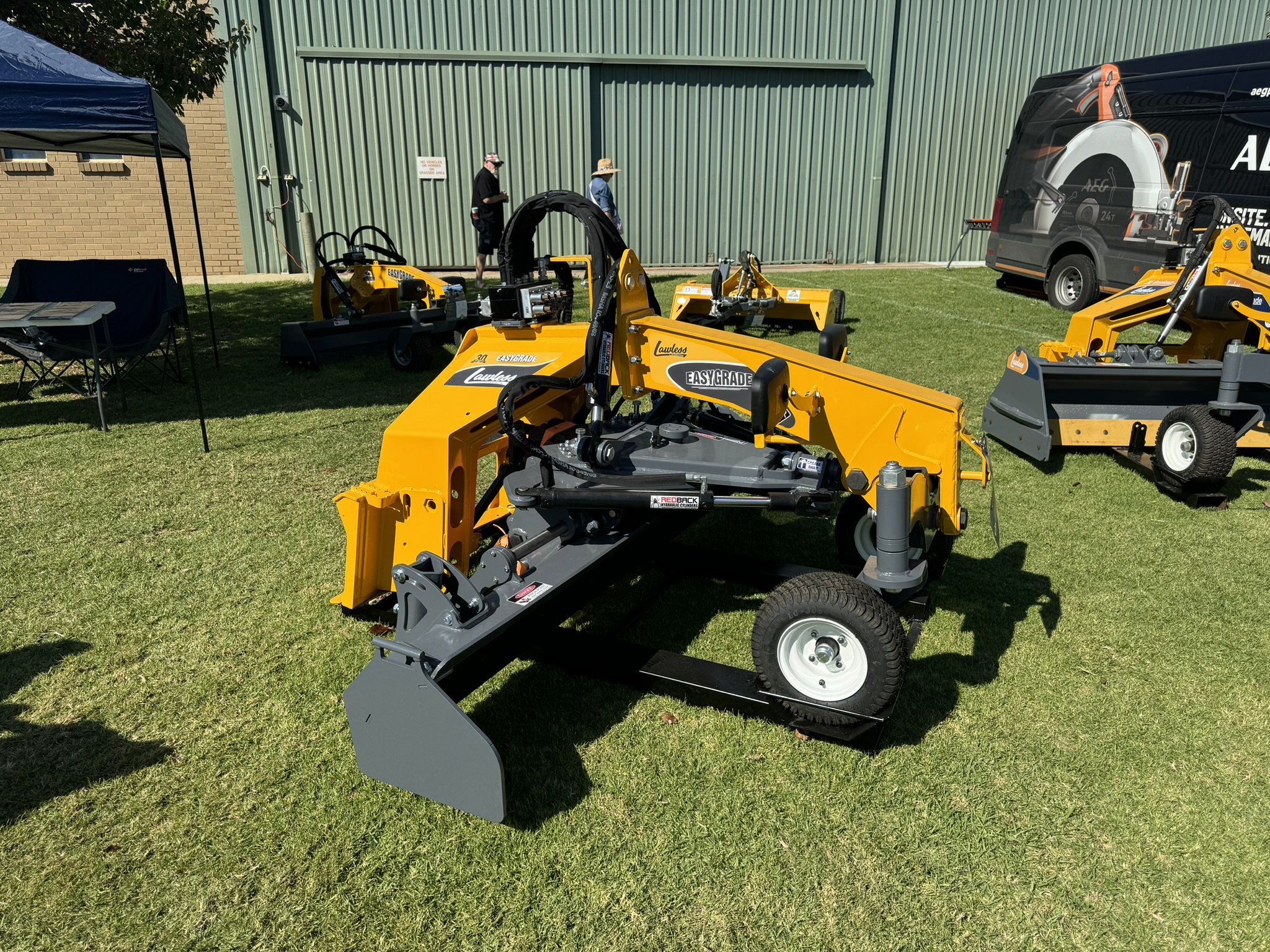

EasyGrade R

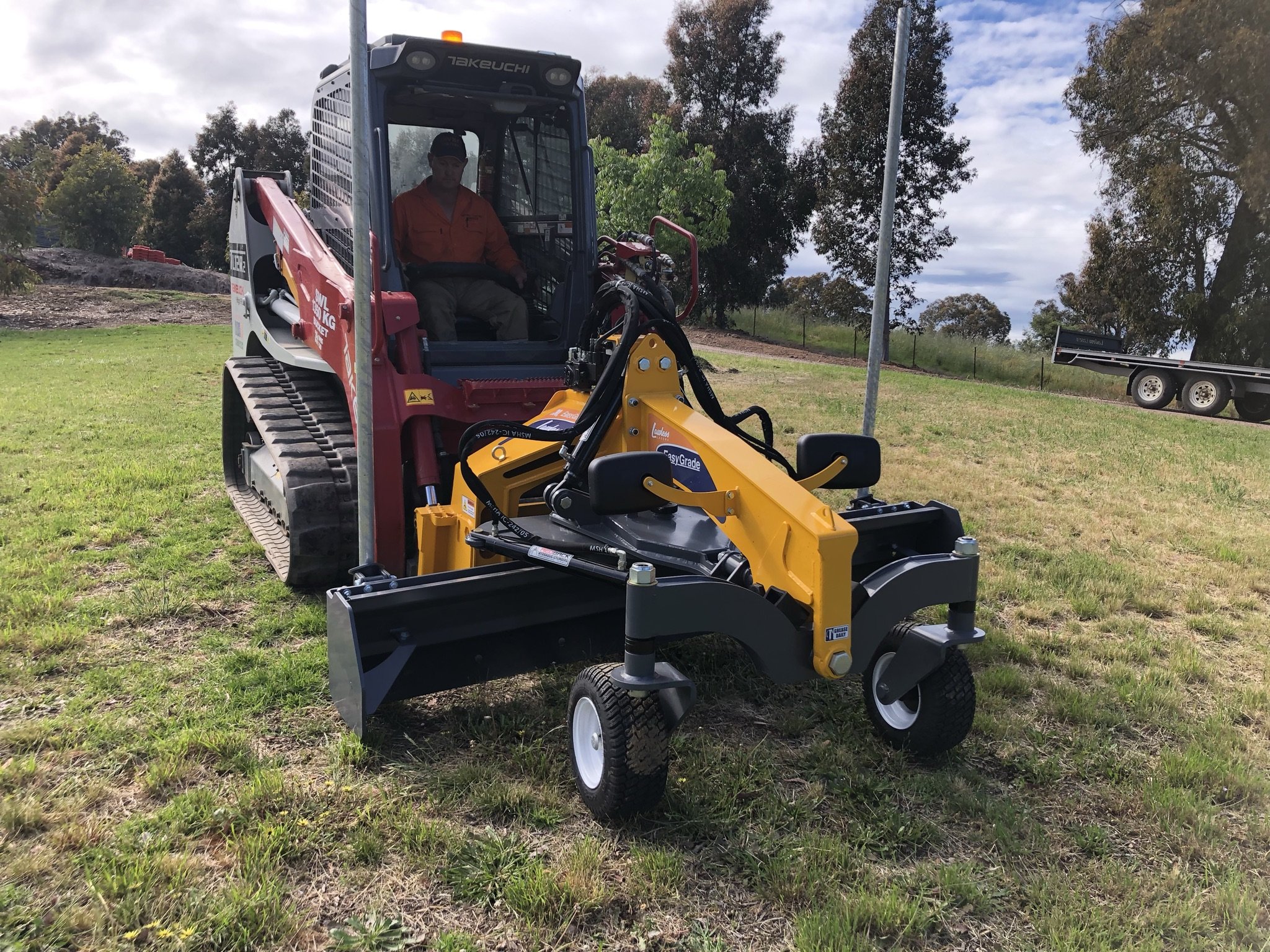

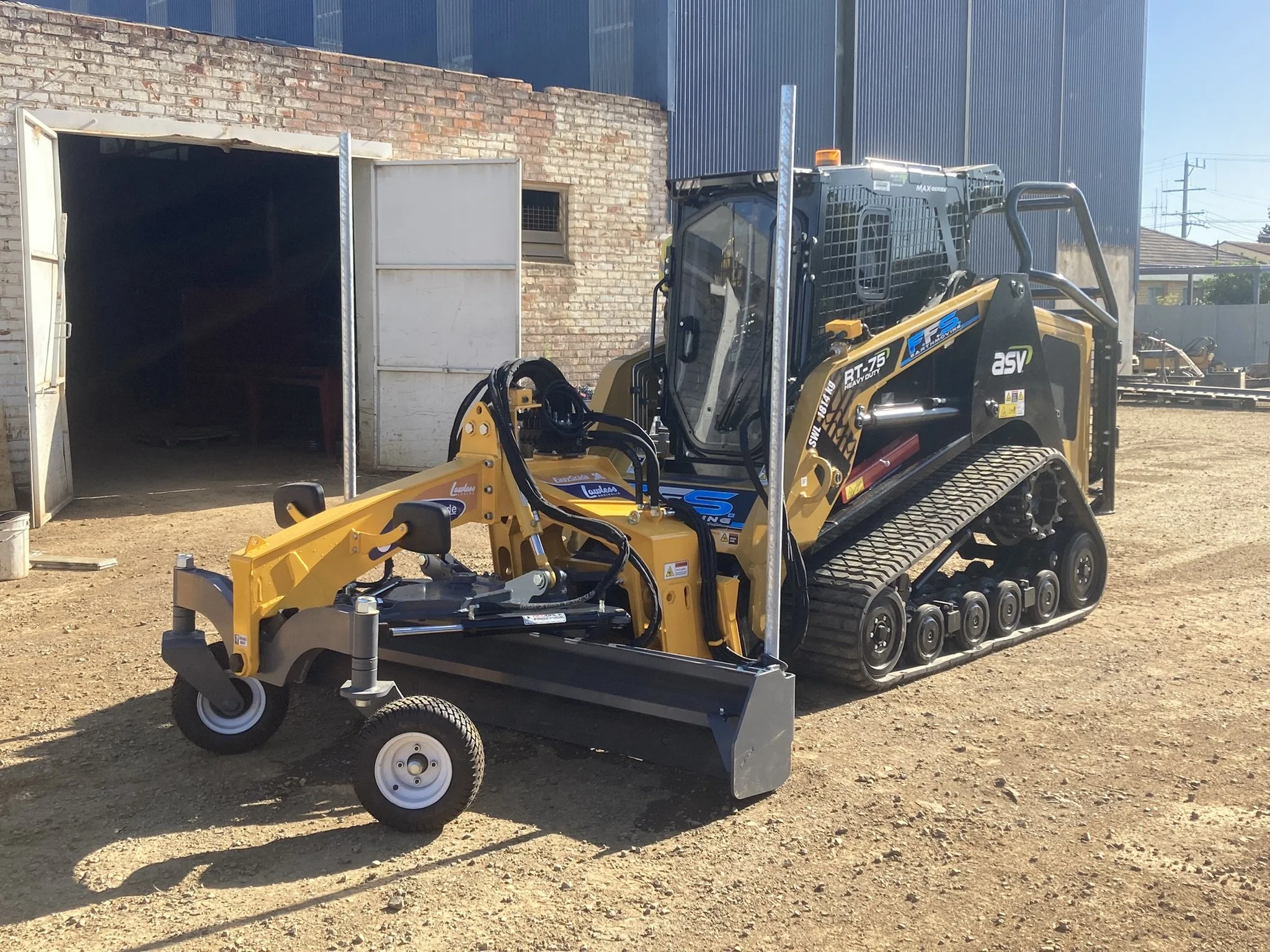

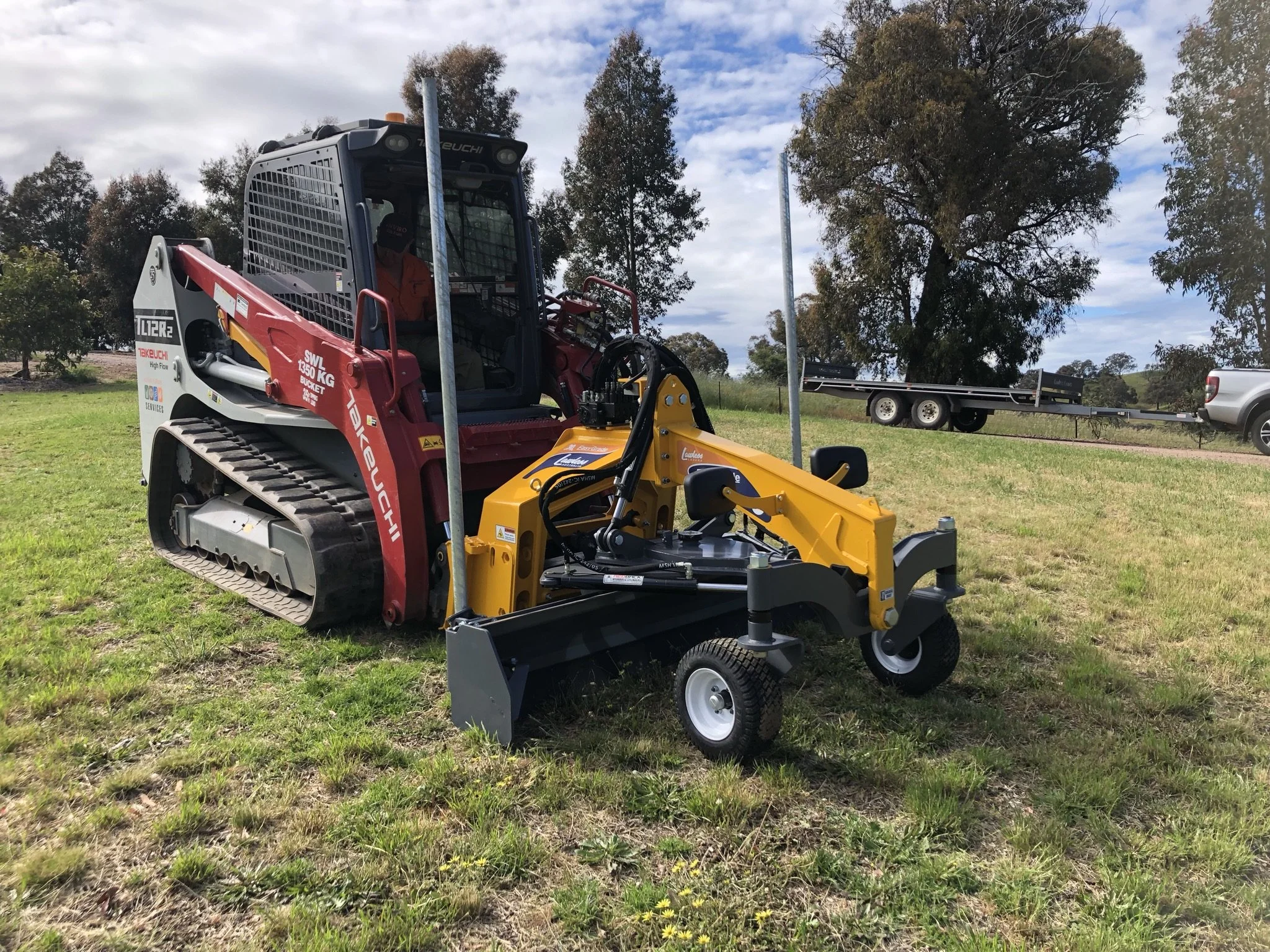

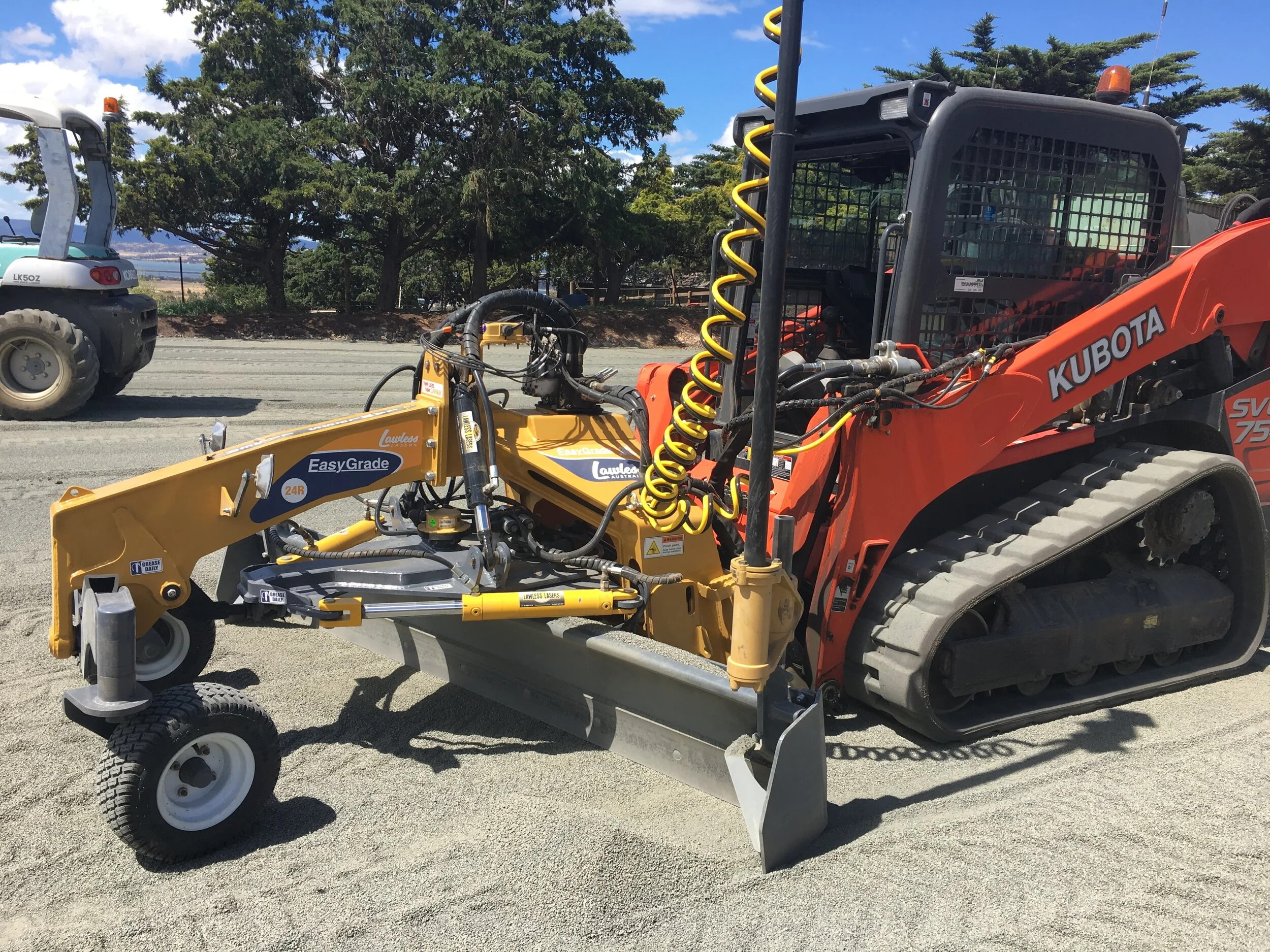

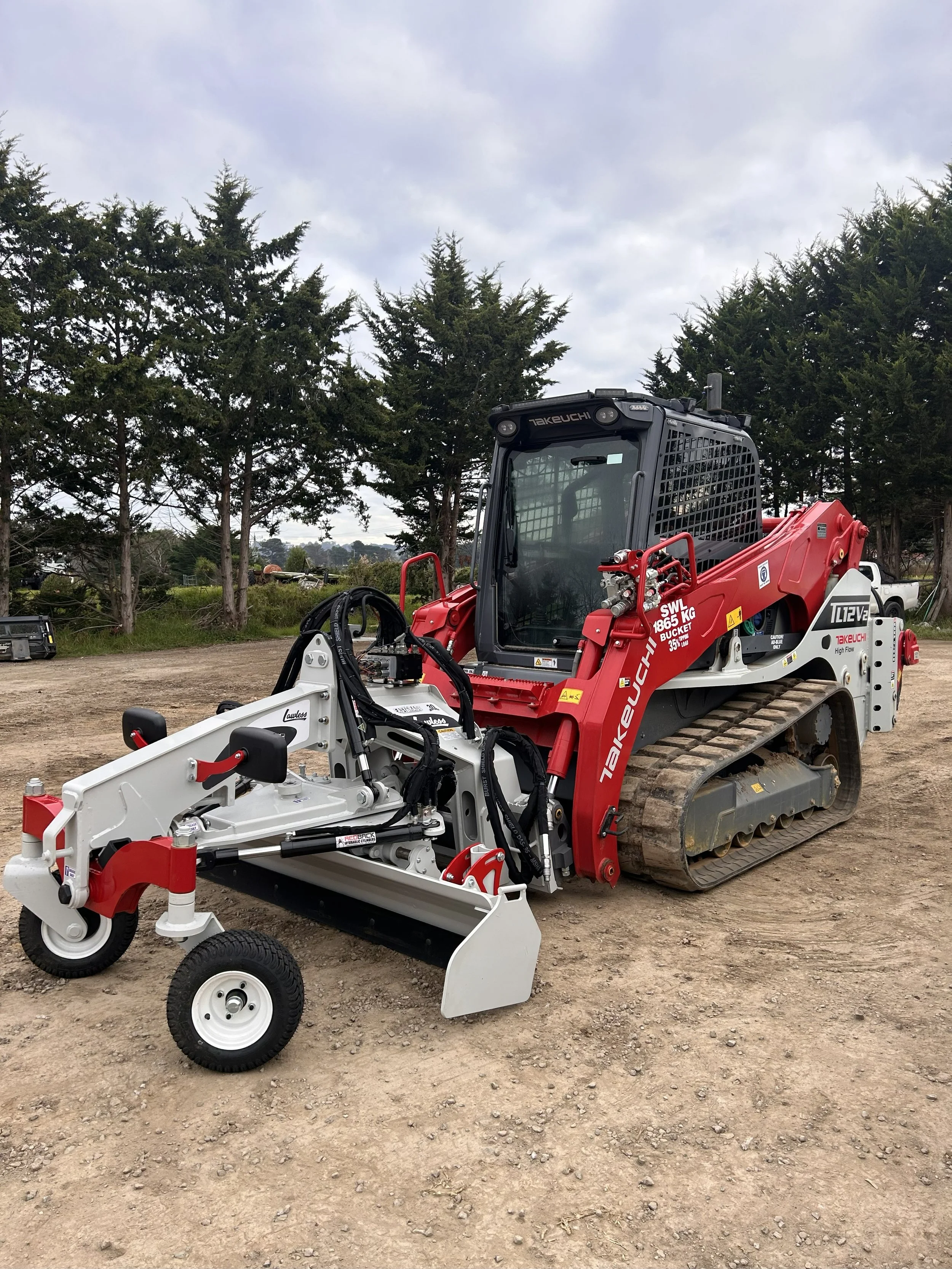

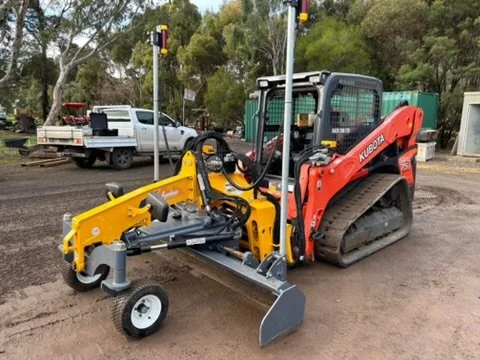

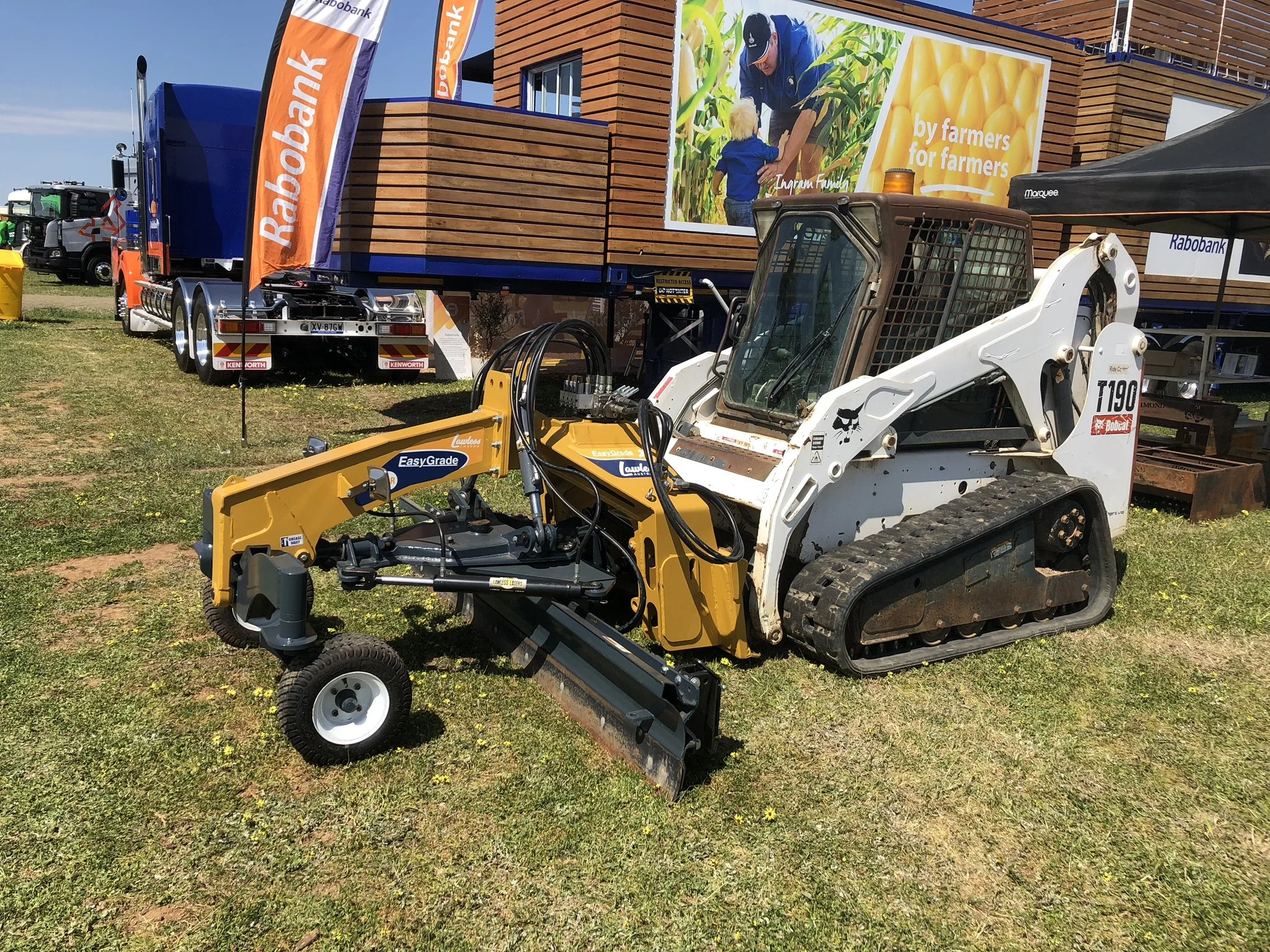

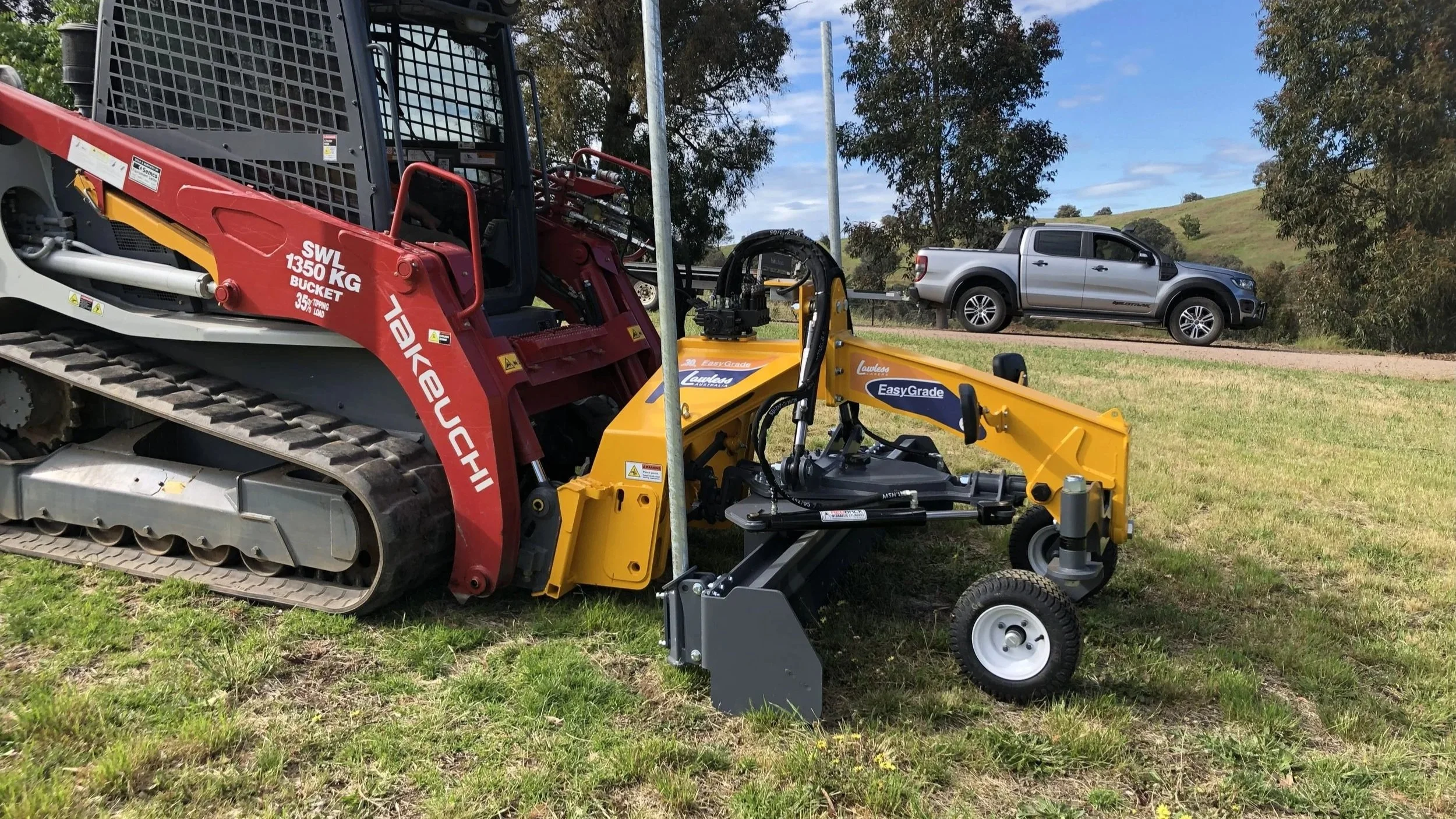

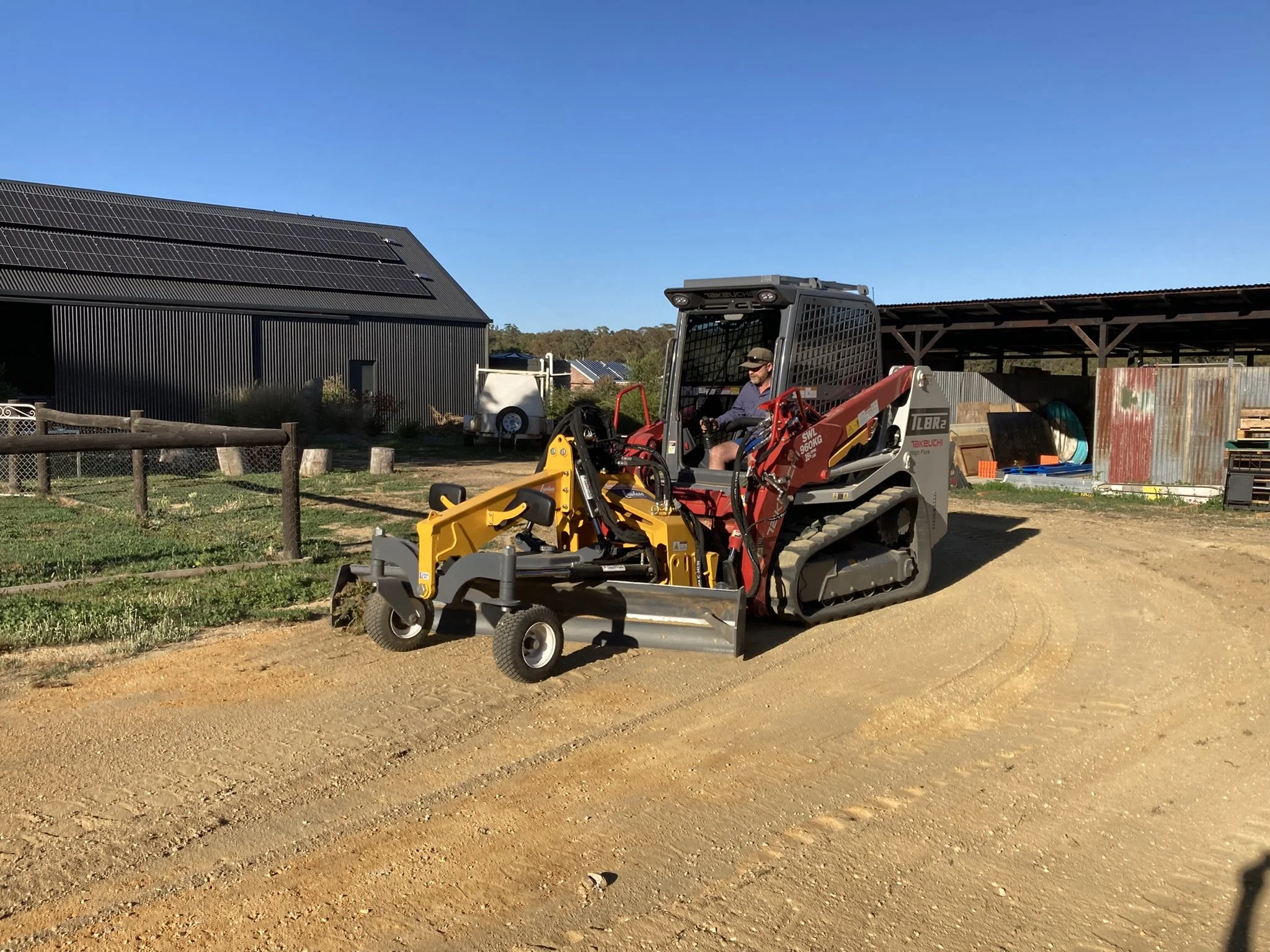

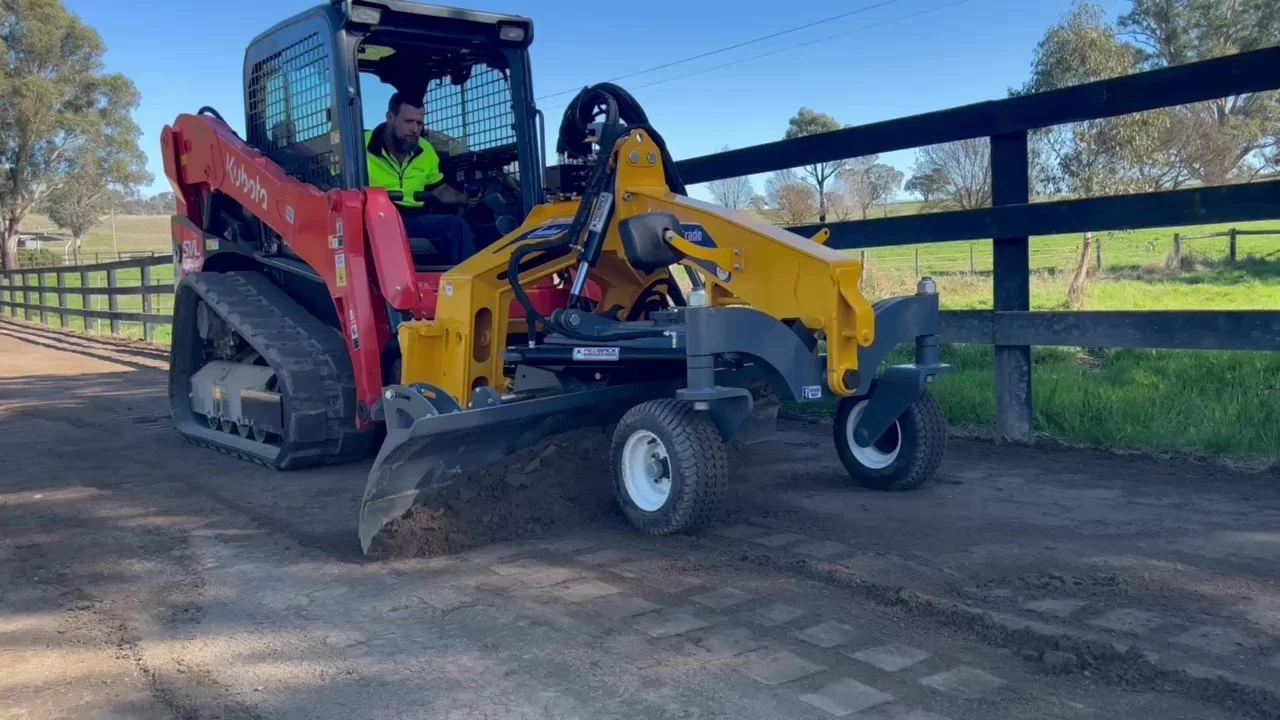

Purpose-built for serious grading performance, the EasyGrade R-Series transforms your skid steer into a highly capable machine that performs more like a full-sized road grader. It’s a compact yet powerful solution for operators needing precision on tight or demanding job sites.
With its generous 2.4 m blade width, the EasyGrade R-Series is built for productivity. The larger size pairs best with a mid-to-large skid steer to make full use of its capability, and its tough build delivers the performance needed for demanding grading work. Removable wings add further versatility, allowing the machine to handle a broader range of tasks similar to a box blade such as our EasyGrade B.
It’s an ideal choice for applications such as:
Road construction
Large concrete pours
Shed pads
Car parks
Horse arenas
Landscaping
Key Features and Options
-
42° Blade Rotation - Allows Material to Roll Along the Blade
400mm Side Shift - Enabling Greater Blade Control
Adjustable Blade Roll - Additional Control for Variable Applications
Dual Height Control - Suitable for Laser or GPS Options
-
Twin Castors - Improves Machine Stability and Finish Quality
Solid Fill Tires - Greater Load Carrying Capacity w. No Punctures
Bump Stops - Rubber Dampeners to Cushion Movement of Walking Beam
Highway Grade Stubs and Bearings - Easy to Maintain and Replace
-
Proportional Solenoids - Provides Fast and Accurate Blade Movement
Flat Face Couplings - Connects Directly to your Machine
Hydraulic Flow Protection - Check Valve to Eliminate Accidental Damage
Genuine Walvoil™ Valve - Spare Parts Available Nationwide
-
14, 8 or 7 Pin Deutsch Connector - Connects Directly to Your Machine
Joystick Integration - Control Blade via Joystick AUX Functions
Configured to Suit Your Model of Skid Steer
Intuitively Operate Machine and Attachment Simultaneously
Features
Dual proportional control valves – Provide smooth, precise blade movements for a consistent and accurate finish across all surfaces.

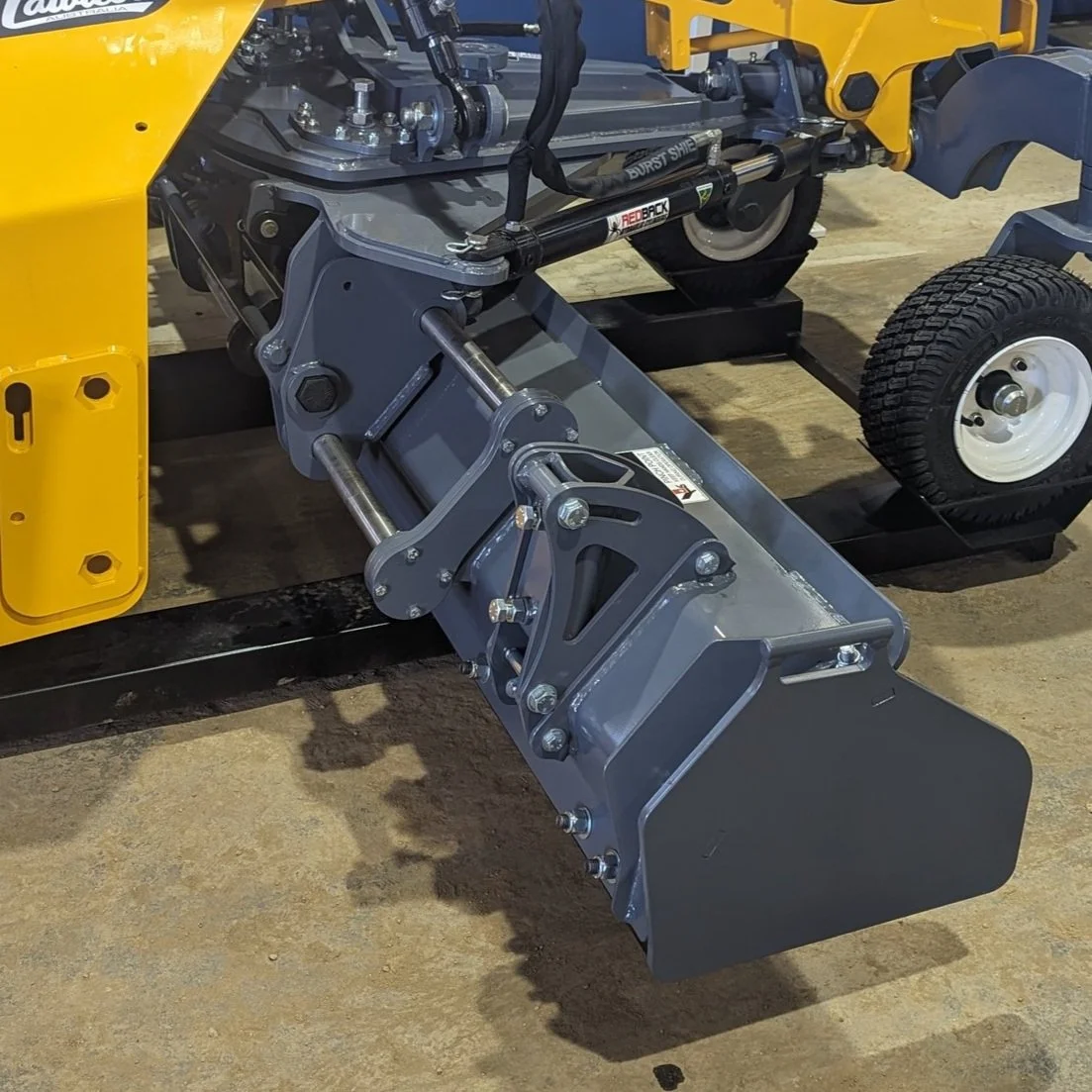

Road grader blade – Built with advanced features to deliver precision, flexibility, and true grader-style performance.
Solid fill tyres – Eliminate the risk of punctures while offering improved durability and load-carrying capacity.
Skid steer couplings with non-return valve – Compatible with a wide range of skid steers and ensures reliable hydraulic operation.
Stub axle castor system – Allows for easy maintenance and replacement using common, off-the-shelf components.
Convex mirrors – Offer a clear view of the front blade to enhance safety and precision during operation.
Adjustable inner and outer wing wear plates – Extend the working life of both the grader and its wear parts.

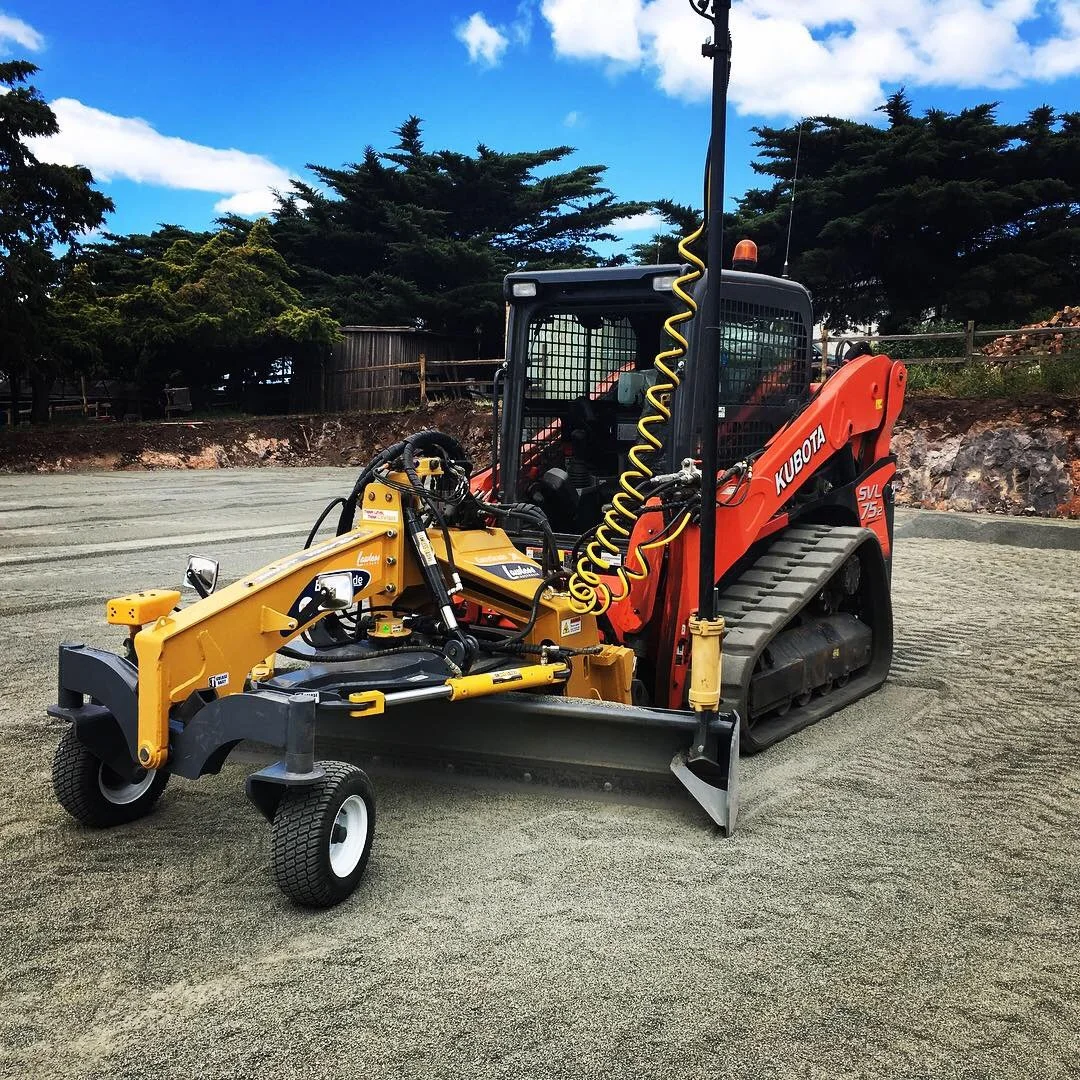

Mast pole brackets with removable pole – Make transport and site setup easier and more efficient.
Integrated tie-down and lifting points – Improve safety and streamline movement between jobs.
Junction box mounts – Machine control ready and compatible with a wide range of system brands.
Cross slope sensor bracket – Supports machine control integration for accurate cross slope grading.
